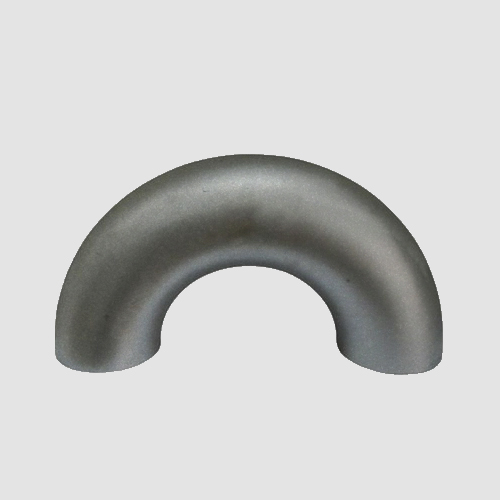

180 Degree Elbow

Outside Diameter

Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～72″)

Wall Thickness

2mm – 50mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Manufacturing Standards

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, GB/T12459, GB/T13401, SH3408, SH3409, JIS B2311/2220, DIN2617/2616/2615

Material

20#, 20G,Q235-A, ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

16Mn, ASTM A420 WPL3, A420 WPL6

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, WB36, 12CrMo, 15Cr5Mo, 1Cr5Mo, 12Cr1MoV


Send Email
Details

180度弯头(图1)


ominal
Pipe Size
(NPS)

Outside Diameter
at Bevel
D

Long Radius Elbows

Short Radius Elbows

Center to Center
P

Back to Face
K

Center to Center
P

Back to Face
K

1/2

21.3

76.2

47.8

---

---

3/4

26.7

76.2

50.8

---

---

1

33.4

76.2

55.6

50.8

41.1

1-1/4

42.2

95.2

69.8

63.5

52.3

1-1/2

48.3

114.3

82.6

76.2

62.0

2

60.3

152.4

106.4

101.6

81.0

2-1/2

73.0

109.5

131.8

127.0

100.1

3

88.9

228.6

158.8

152.4

120.7

3-1/2

101.6

266.7

184.2

177.8

139.7

4

114.3

304.8

209.6

203.2

158.8

5

141.3

381.0

261.9

254.0

196.9

6

168.3

457.2

312.7

304.8

236.5

8

219.1

609.6

414.3

406.4

312.7

10

273.1

762.0

517.7

508.0

390.7

12

323.9

914.4

619.3

609.6

466.9

14

355.6

1066.8

711.2

711.2

533.4

16

406.4

1219.2

812.8

812.8

609.6

18

457.2

1371.6

914.4

914.4

685.8

20

508.0

1524.0

1016.0

1016.0

762.0

22

558.8

1676.4

1117.6

1117.6

838.2

24

609.6

1828.8

1219.2

1219.2

914.4

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
